The Main Technical Parameters:
Model:3SJ
Film Width:300~1700mm
Suitable Material:LDPE/LLDPE/MLDPE
Film Thickness:0.04-0.15mm
Max. Extrusion Output:50~180kg/h
Product Details

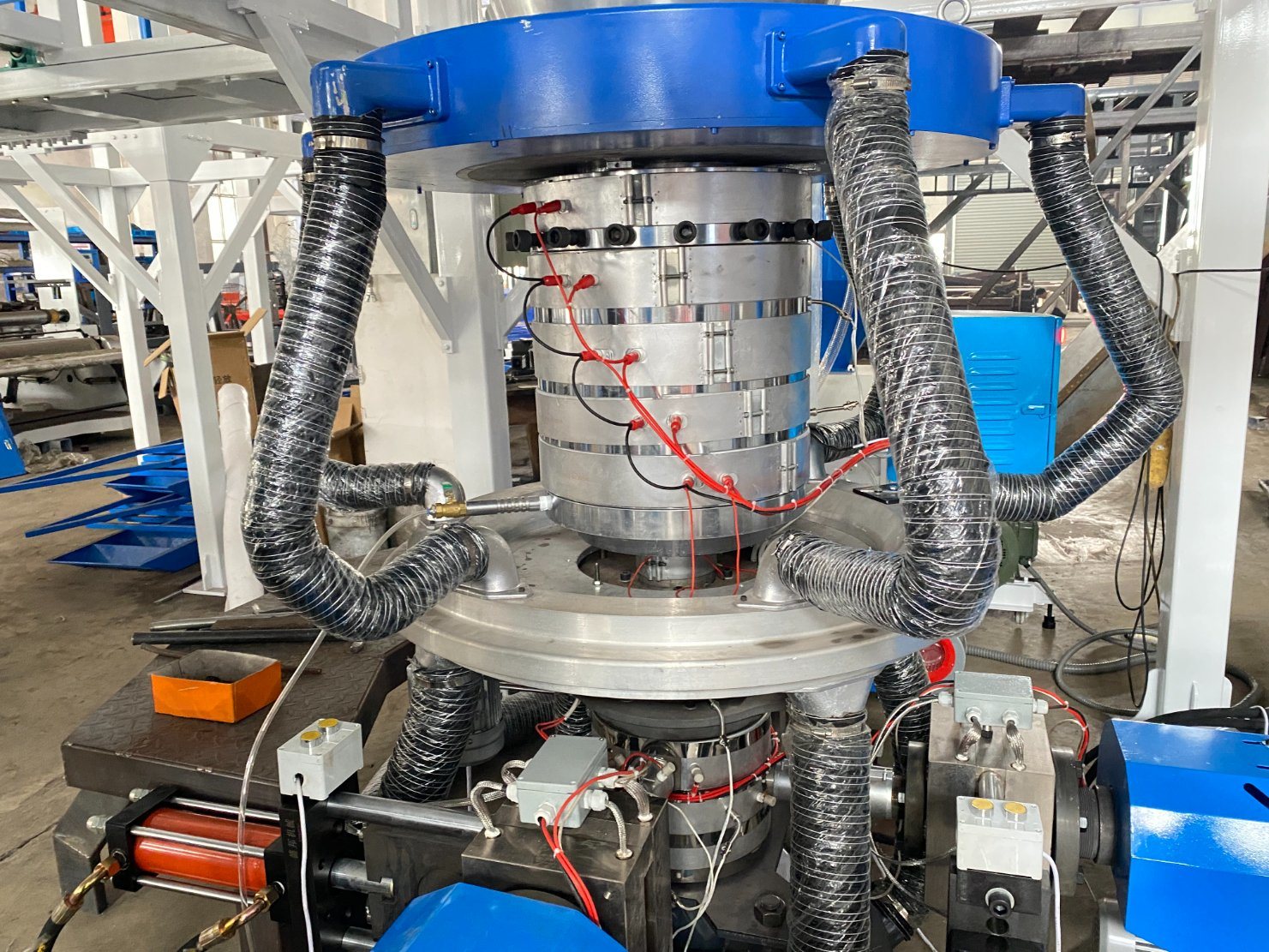

Die Head
Die size:Φ200~Ф450
Temperature control:3
Air ring:1
Air blower:5.5kw~11kw
Using three air ring to start, the cooling effect is better
Electrical Control Cabinet:
Chint/Schneider
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop/m6L4x1DbjasDOJKx/qqa3-4c20230429003037-A1ar2ObOaQTVvE9A.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=267,h=224,fit=crop/m6L4x1DbjasDOJKx/qqa3-4c20230429003037-A1ar2ObOaQTVvE9A.jpg)

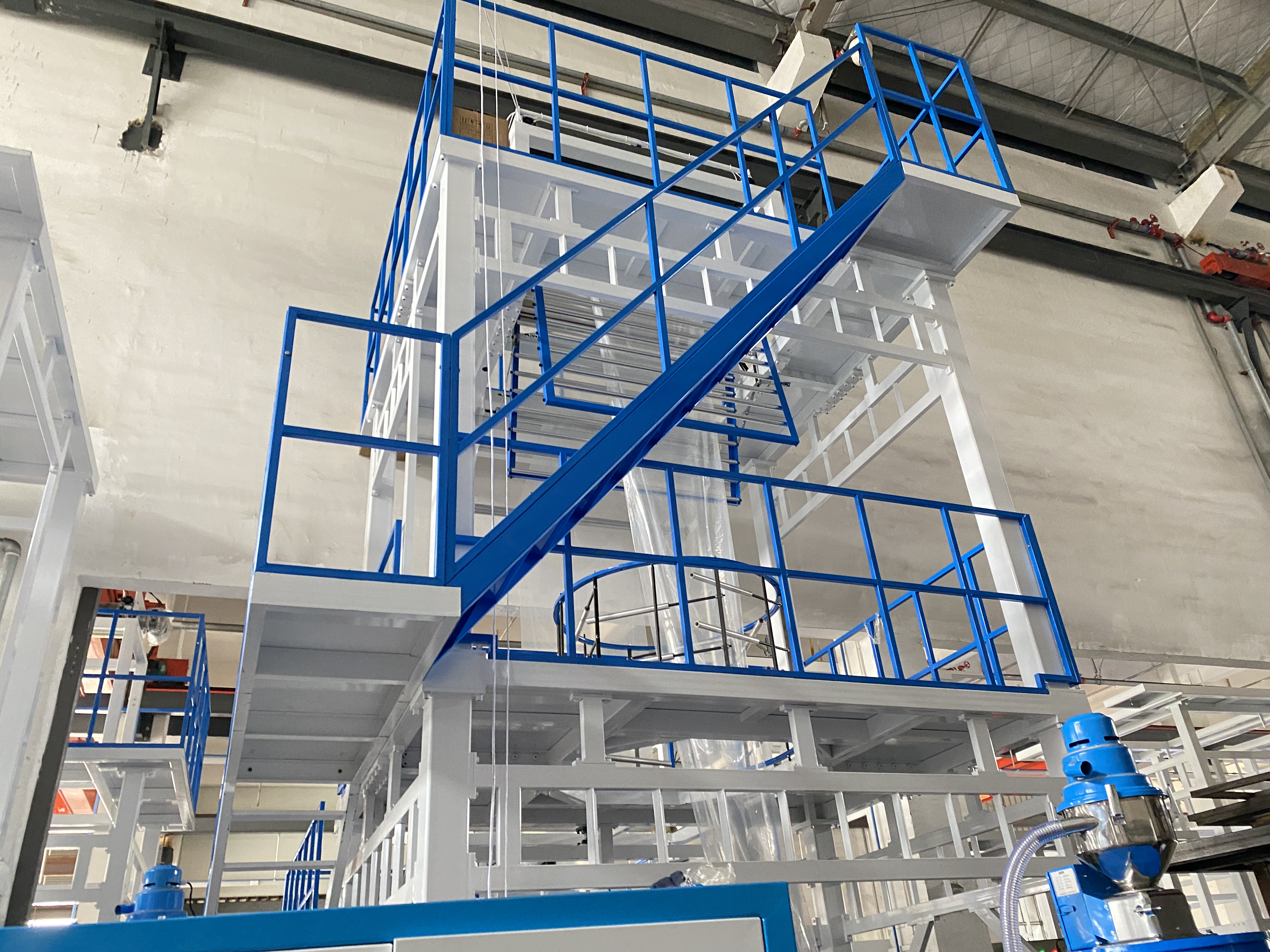

Frame
The thick frame makes themachine more durabie andreliable.
The square tubes ofmachines are allthickened with adiameter of 120mm.
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop/m6L4x1DbjasDOJKx/d319300464d026ee374bd2602312d3d-m5Kr3V8JXWiXgaQl.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=279,h=272,fit=crop/m6L4x1DbjasDOJKx/d319300464d026ee374bd2602312d3d-m5Kr3V8JXWiXgaQl.jpg)

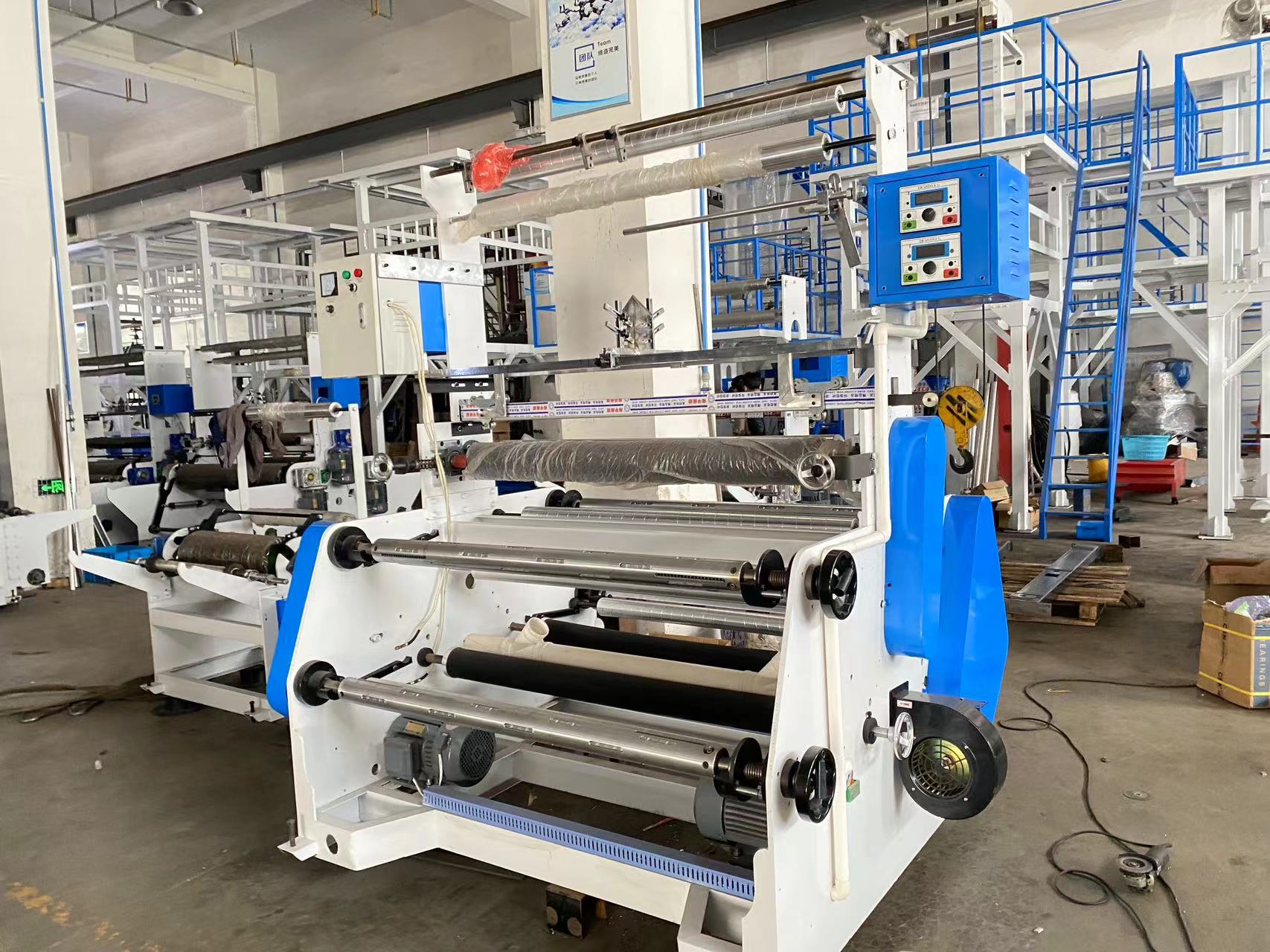

Film Winding
Type:SURFACE FRICTION TYPEFRICCION DESUPERFICIE
Winding motor:10N.m~16N.m
Winding speed:10-65m/min
Single Winding/Double Winding
Manual rewinding/Fully automatic rewinding
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop,trim=0;17.159609120521175;0;0/m6L4x1DbjasDOJKx/262a2c9d36d79023070c3da0a3761ab-Yle5rPowZpcoOQkO.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=262,h=176,fit=crop,trim=0;24.662921348314608;0;0/m6L4x1DbjasDOJKx/262a2c9d36d79023070c3da0a3761ab-Yle5rPowZpcoOQkO.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop,trim=172.79999999999998;0;172.79999999999998;0/m6L4x1DbjasDOJKx/qqa3-4c20230429003021-d95raRMb12FPJG6a.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=262,h=256,fit=crop,trim=0;472.9618768328446;0;472.9618768328446/m6L4x1DbjasDOJKx/qqa3-4c20230429003021-d95raRMb12FPJG6a.jpg)
Blown Film Bubble Cage
Blown Flim Take-Up Unit
Film edge automatic control
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop,trim=0;0;338.95384615384614;0/m6L4x1DbjasDOJKx/0b0f7d5d75e01568c0a117a75e1a135-YX4zrDK7M8u5KDvo.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=262,h=192,fit=crop,trim=0;0;61.71428571428571;0/m6L4x1DbjasDOJKx/0b0f7d5d75e01568c0a117a75e1a135-YX4zrDK7M8u5KDvo.jpg)
Second traction
Roller width: 159x1100/1300/1500/1700mm
Effective width:1000~1600mm
Take-up speed:10-65m/min
Take-up motor:1.5kw/2.2kw
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=404,fit=crop,trim=0;0;140.9691629955947;0/m6L4x1DbjasDOJKx/a3-4-r-a-a3-4c_20230429000926-AR0Vkp96G5HBDB0y.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=262,h=256,fit=crop,trim=0;395.4633431085044;0;0/m6L4x1DbjasDOJKx/a3-4-r-a-a3-4c_20230429000926-AR0Vkp96G5HBDB0y.jpg)
Feeding accuracy controller
The thickness of the film is control bythe computer: the output, the usedmaterials weight all can be monitoredin real time.
It can effectively solve the problems ofheavy, light, thick and thin packagingfilm.
The control accuracy of packaging filmMick weight can reach less than 0.5%,but also can save raw materials andstabilize the weight of products.
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=612,h=408,fit=crop,trim=142.22222222222223;0;0;0/m6L4x1DbjasDOJKx/a3-4-r-a-a3-4c_20230426151324-AoPN5aoX7QTk64Vr.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=262,h=256,fit=crop,trim=0;0;0;395.4633431085044/m6L4x1DbjasDOJKx/a3-4-r-a-a3-4c_20230426151324-AoPN5aoX7QTk64Vr.jpg)
Screw
Screw material: 38CrMOAL+Alloy material
Screw diameter:Ф50/55/60/65/70/75/80
Screw L/D length:32:1
Cytinder cooling:370wx2
Driving motor:15kw~30kwx 2/18.5kw~45kwx 1
Temperature control:3~5
Average power-consume:50kw~105kw
Packaging and Shipping
Get A Quote Now
Q: Where is your factory located?
A: Our factory is situated in Ruian City, Zhejiang Province, China. It's about a 40-minute flight or a 4-hour train ride from Shanghai. We would be happy to pick you up at the airport or station and welcome you to visit our factory.
Q: How long is your delivery time?
A: Our standard delivery time is usually 30-45 days. However, if you need it urgently, we can manufacture your machine first and deliver it within approximately 10 days.
Q: What's your warranty policy?
A: We offer an 18-month warranty on all our products, along with lifetime maintenance. This means that if any parts break down during the warranty period, we will provide free replacement parts.
Q: What package do you use for the product?
A: Our products are coated with anti-corrosion oil and covered with plastic film for protection. If you prefer wooden box packing, there may be an additional cost.
Q: Does your factory provide installation service?
A: Yes, our engineers can go to the customer's factory for installation. The buyer should prepare the necessary materials for testing the machine in advance and bear the cost of the supplier's technicians, including round-trip airfare, visa fees, accommodation, and wages. The cost is USD 120 per person per day, starting from the date of work commencement until their arrival at the factory.
Q: What are your terms of payment?
A: We accept various payment methods such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Western Union. Please let us know which method you prefer when making the payment.
Q: What if parts break within the warranty period?
A: If any parts break down due to manufacturing defects within the warranty period, we will express replacement parts free of charge. You can contact our customer service team to initiate the warranty claim process.
F.A.Q.
